Seamless Casing Pipe

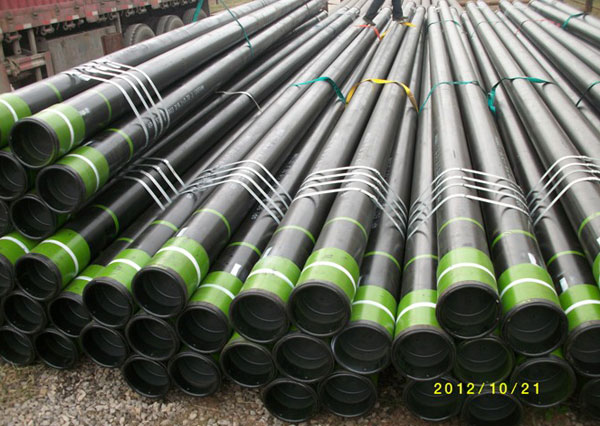

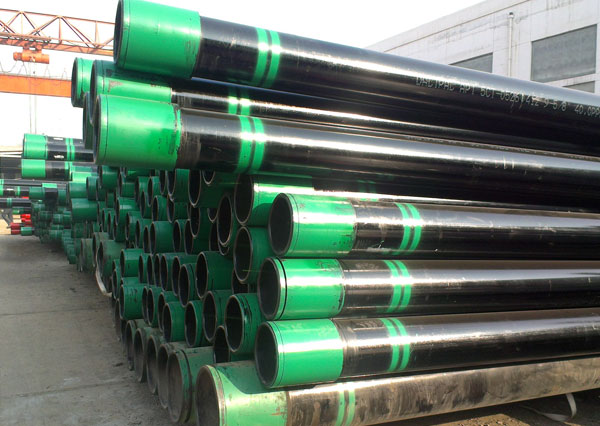

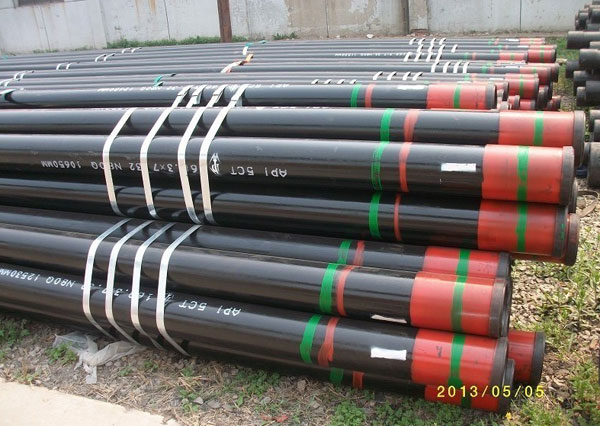

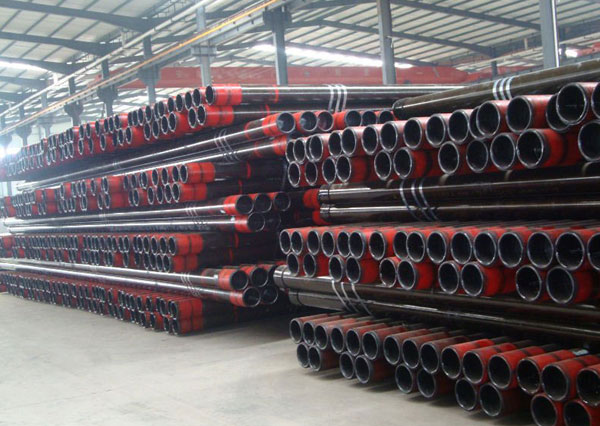

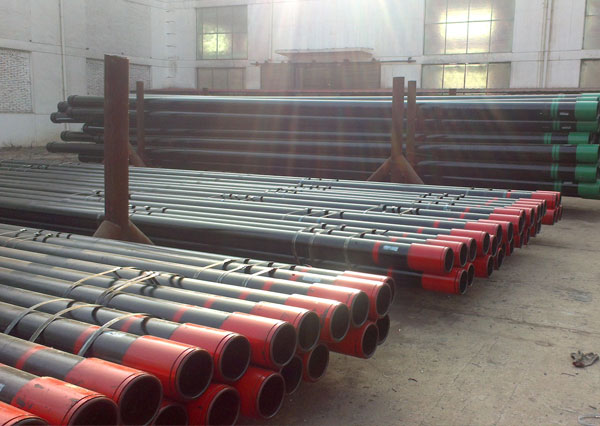

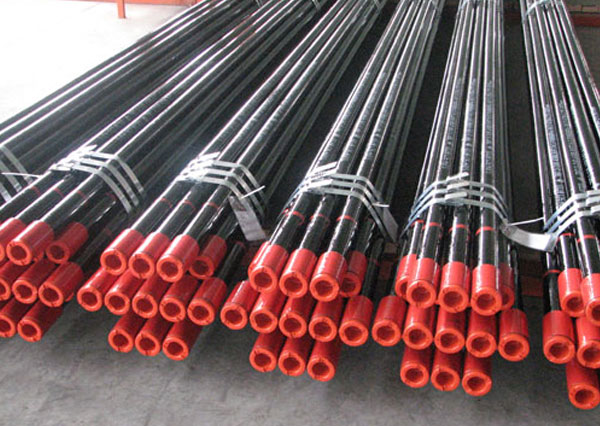

API5CT Seamless Casing Pipe
Casing Pipe is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore. It is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.
Descriptions:
1 Production Process: Seamless & ERW
2 Specification: API 5CT /5B
3 Out Diameter: 4 1/2"- 20" (114.3mm-508mm)
4 Thread: LTC ( Long Round Thread), STC ( Short Round Thread), BTC ( Buttress Thread) and other premium connections which can be made as per the given drawings
5 Length:R1(4.88-7.62m), R2(7.62-10.36m), R3(10.36-14.63m))
6 Steel Grade: H-40, J55, K-55, N-80, L-80, P110, Q-125
7 Surface: Corrosion proofing water based paint
8 Heat treatment: Normalized, Quencher+Temper
9 Loading:
Pipe length less than 5.8m (20 feet container)
Pipe length less than 11.8m (40 feet container)
Pipe length more than 11.8m (Bulk shipment)
TPCO Products
|
S.M.Y.S
(psi)
|
High
Collapse
|
Steam
Injection
|
Sour
Services
|
High
Collapse
Sour
Services
|
3Cr
|
13Cr
HP-13Cr; SUP-13Cr |
High
Strength
Deep
Well
|
|
40,000
|
|
|
|
|
|
|
|
|
55,000
|
|
|
|
|
|
|
|
|
65,000
|
|
|
|
|
|
|
|
|
80,000
|
TP80T
TP80TT
|
|
TP80S TP80SS
|
TP80TS TP80TSS
|
TP80-3Cr
|
TP80-13Cr
|
|
|
90,000
|
|
TP90H
|
TP90S TP90SS
|
TP90TS TP90TSS
|
TP90-3Cr
|
TP90-13Cr
|
|
|
95,000
|
|
|
TP95S TP95SS
|
TP95TS TP95TSS
|
TP95-3Cr
|
TP95-13Cr
|
|
|
100,000
|
|
TP100H
|
TP100S TP100SS
|
TP100TS TP100TSS
|
|
|
|
|
110,000
|
TP110T TP110TT
|
TP110H
|
TP110S TP110SS
|
TP110TS
|
TP110-3Cr
|
TP110 HP-13CR
TP110 SUP-13CR
|
|
|
125,000
|
TP125T TP125TT
|
TP125H
|
|
|
TP125-3Cr
|
TP125 HP-13CR
TP125SUP-13CR
|
|
|
130,000
|
TP130T TP130TT
|
|
|
|
|
|
|
|
140,000
|
|
|
|
|
|
|
TP140V
|
|
150,000
|
|
|
|
|
|
|
TP150V
|
|
155,000
|
|
|
|
|
|
|
|
