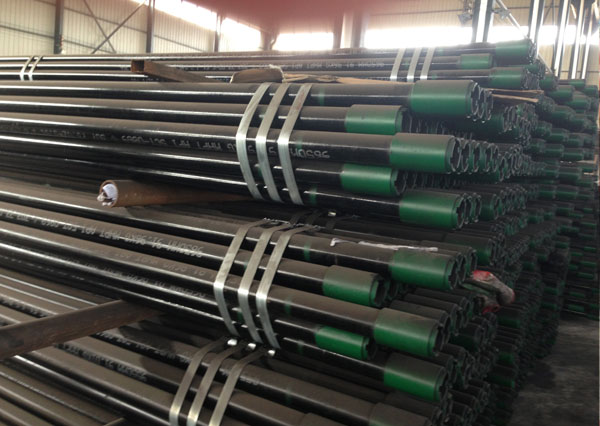

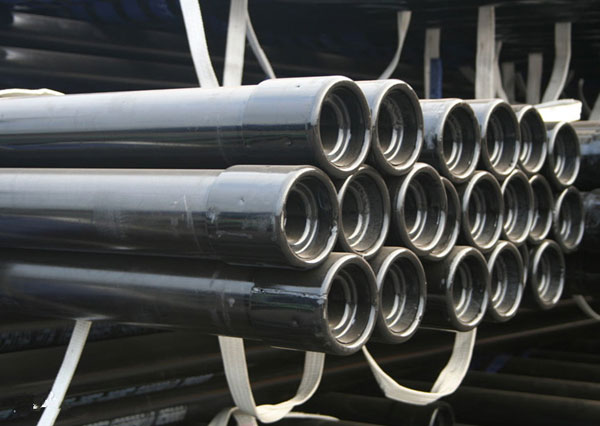

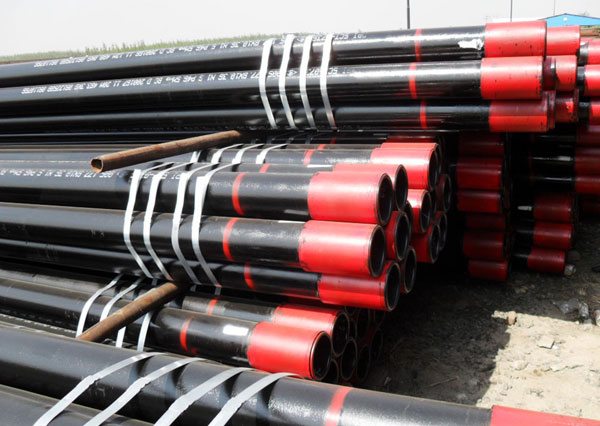

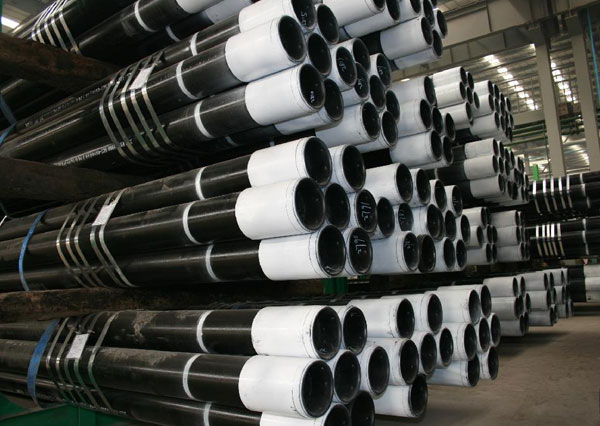

Seamless Oil Tubing

Oil Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.
Descriptions:
1 Production Process: Seamless & ERW
2 Specification: API 5CT /5B
3 Out Diameter: 3/4" - 4 1/2" (26.7mm-114.30mm)
4 Thread: EUE ( Exteral Upset End), NUE ( Non Upset End)
5 Length:R1( 6.10-7.32m ), R2( 8.53-9.75m), R3(11.58-12.80m))
6 Steel Grade: H-40, J55, K-55, N-80, L-80, P110, Q-125
7 Surface:Corrosion proofing water based paint
8 Heat treatment:Normalized, Quencher+Temper
9 Loading:
Pipe length less than 5.8m (20 feet container)
Pipe length less than 11.8m (40 feet container)
Pipe length more than 11.8m (Bulk shipment)

sizes				OD D mm	weight			wt t mm	Type of end
1	2				NU kg/m	EU kg/m	IJ kg/m
	NU	EU	IJ
	NU	EU	IJ						H40	J55	L80	N80 1¸Qàà	C90	T95	P110
1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
2-3/8 2-3/8 2-3/8 2-3/8 2-3/8	4.00 4.60 5.80 6.60 7.35	- 4.70 5.95 - 7.45	- - - - -	60.32 60.32 60.32 60.32 60.32	5.95 6.85 8.63 9.82 10.94	- 6.99 8.85 - 11.09	- - - - -	4.24 4.83 6.45 7.49 8.53	PU PNU - - -	PN PNU - - -	PN PNU PNU P PU	PN PNU PNU - -	PN PNU PNU P PU	PN PNU PNU P PU	- PNU PNU - -
2-7/8 2-7/8 2-7/8 2-7/8 2-7/8 2-7/8	6.40 7.80 8.60 9.35 10.50 11.50	6.50 7.90 8.70 9.45 - -	- - - - - -	73.02 73.02 73.02 73.02 73.02 73.02	9.52 11.61 12.80 13.91 15.63 17.11	9.67 11.76 12.95 14.06 - -	- - - - - -	5.51 7.01 7.82 8.64 9.96 11.18	PNU - - - - -	PNU - - - - -	PNU PNU PNU PU P P	PNU PNU PNU - - -	PNU PNU PNU PU P P	PNU PNU PNU PU P P	PNU PNU PNU - - -
3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2	7.70 9.20 10.20 12.70 14.30 15.50 17.00	- 9.30 - 12.95 - - -	- - - - - - -	88.90 88.90 88.90 88.90 88.90 88.90 88.90	11.46 13.69 15.18 18.90 21.28 23.07 25.30	- 13.84 - 19.27 - - -	- - - - - - -	5.49 6.45 7.34 9.52 10.92 12.09 13.46	PN PNU PN - - - -	PN PNU PN - - - -	PN PNU PN PNU P P P	PN PNU PN PNU - - -	PN PNU PN PNU P P P	PN PNU PN PNU P P P	- PNU - PNU - - -
4 4 4 4 4 4	9.50 10.70 13.20 16.10 18.90 22.20	- 11.00 - - - -	- - - - - -	101.60 101.60 101.60 101.60 101.60 101.60	14.14 - 19.64 23.96 28.13 33.04	- 16.37 - - - -	- - - - - -	5.74 6.65 8.38 10.54 12.70 15.49	PN PU - - - -	PN PU - - - -	PN PU P P P P	PN PU - - - -	PN PU P P P P	PN PU P P P P	- - - - - -
4-1/2 4-1/2	12.60 15.20	12.75 -	- -	114.30 114.30	18.75 22.62	18.97 -	- -	6.88 8.56	PNU -	PNU -	PNU P	PNU -	PNU P	PNU P	- -
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2	17.00 18.90 21.50 23.70 26.10	- - - - -	- - - - -	114.30 114.30 114.30 114.30 114.30	25.30 28.13 32.00 35.27 38.84	- - - - -	- - - - -	9.65 10.92 12.70 14.22 16.00	- - - - -	- - - - -	P P P P P	- - - - -	P P P P P	P P P P P	- - - - -
P——Plain end;N—Non-upset threaded and coupled;U—External upset threaded and coupled;I—insert joint.

TPCO Products

S.M.Y.S (psi)	High Collapse	Steam Injection	Sour Services	High Collapse Sour Services	3Cr	13Cr HP-13Cr; SUP-13Cr	High Strength Deep Well
40,000
55,000
65,000
80,000	TP80T TP80TT		TP80S TP80SS	TP80TS TP80TSS	TP80-3Cr	TP80-13Cr
90,000		TP90H	TP90S TP90SS	TP90TS TP90TSS	TP90-3Cr	TP90-13Cr
95,000			TP95S TP95SS	TP95TS TP95TSS	TP95-3Cr	TP95-13Cr
100,000		TP100H	TP100S TP100SS	TP100TS TP100TSS
110,000	TP110T TP110TT	TP110H	TP110S TP110SS	TP110TS	TP110-3Cr	TP110 HP-13CR TP110 SUP-13CR
125,000	TP125T TP125TT	TP125H			TP125-3Cr	TP125 HP-13CR TP125SUP-13CR
130,000	TP130T TP130TT
140,000							TP140V
150,000							TP150V
155,000
